By combining liquefied hydrogen storage and transportation technologies, we offer the world's first Mobile Hydrogen Refueling Station (mHRS).
The mHRS was created to increase refueling station availability for hydrogen FCEVs and aid the expanding hydrogen infrastructure.
Liquid Hydrogen Storage Tanks
Efficient vapor exhaust cooling system
Boil-off rates of less than 4% / day
Compact construction and patented pressurization system
Super insulation with guaranteed vacuum life of over 5 years
Products

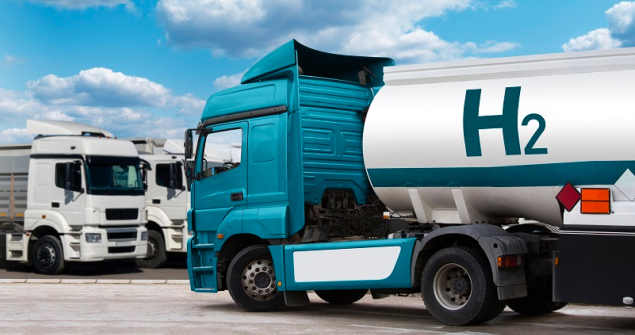

Mobile Hydrogen Refueling Station (mHRS)
The world's first Mobile Hydrogen Refueling Station (mHRS) combining liquefied hydrogen storage and transportation technology. The mHRS was created to increase refueling station availability for hydrogen FCEVs and support the expansion of hydrogen infrastructure.
Capable of transporting up to 2,500L of 3-atmosphere low-pressure liquid hydrogen
800bar liquid hydrogen pump
Hydrogen refueling time, 6kg/min
99.999% high-purity hydrogen fuel supply
Reduces transportation and operating costs by eliminating compressors and chillers.

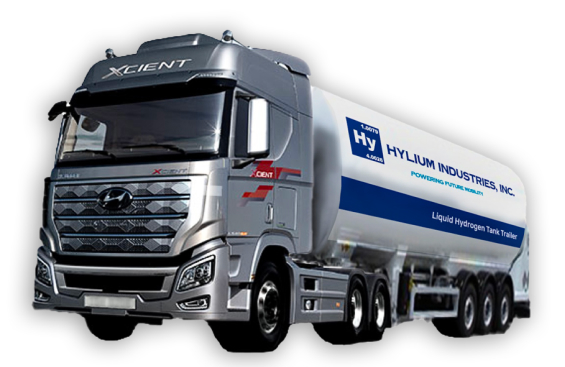

Liquid Hydrogen Trailer
Insulated with multi-layer insulation as well as vacuum insulation to minimize heat flux and consequential product boil-off. State-of-the art cryogenic technologies and first-rate products created by Hylium's expert technicians
Capacity40,000 - 48,000 L
Design pressure10.0 bar g.
Operating pressure3.0 bar g.
Temperature-253 to 38˚C
Holding time120 hrs
Normal evaporation rate0.9%/day
Payload2,500 - 3,000 kg

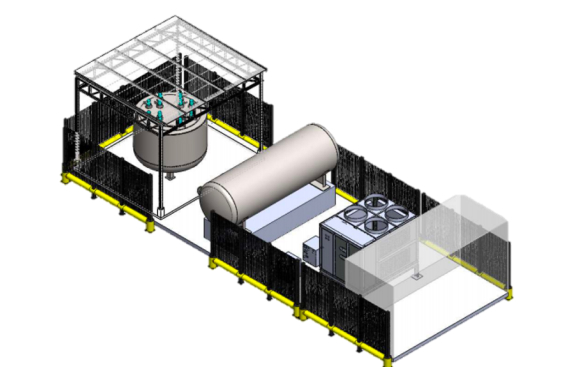

Hydrogen Liquefier
Hydrogen Liquefier is the core technology of Hylium that was acknowledged with a Best Application Paper in Small-Capacity Hydrogen Liquefaction Technology Award by the Cryogenic Engineering Conference.
Super vacuum insulated transfer line and storage
Liquid level sensor and temperature/pressure sensor
Increased safety measures
LH2 liquefaction temperature: -253℃ (20K)
GM - JT Thermodynamic cycle
Ortho-Para converter, 99.99% high-purity LH2 production

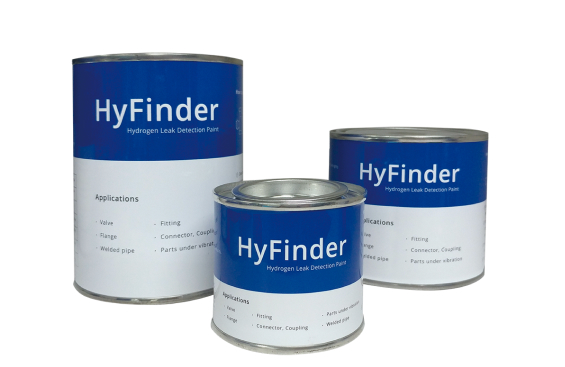

HyFinder
HyFinder is an innovative and easy-to-use hydrogen leak detection tool. The HyFinder's silicone based solution allows you to detect the location of a hydrogen leak with bare eyes without any electricity.
Industries dealing with hydrogen
Hydrogen Refueling Station
Hydrogen fuel cell vehicles
Laboratories using hydrogen
