We're partnering with Hylium to advance the liquid hydrogen industry. As a key player with cutting-edge technology, Hylium specializes in producing, storing, and transporting liquefied hydrogen—the cornerstone of a hydrogen society. We bring a wealth of patents in this field, offering products like mobile charging stations, hydrogen trailers, liquefiers, leak detection, and fuel tanks. Join us and Hylium in shaping the future of energy.
Related Products

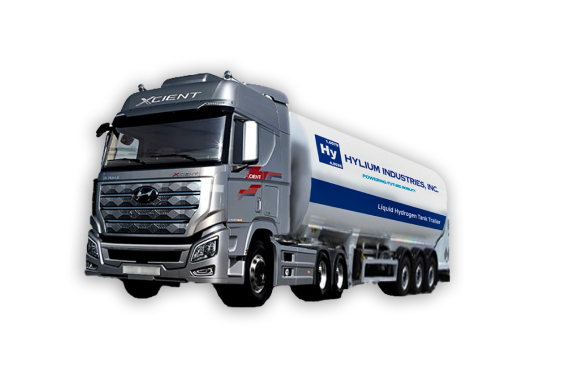

Hydrogen Refueling Station
Hydrogen Refueling Station
By combining liquefied hydrogen storage and transportation technologies, we offer the world's first Mobile Hydrogen Refueling Station (mHRS).
The mHRS was created to increase refueling station availability for hydrogen FCEVs and aid the expanding hydrogen infrastructure.

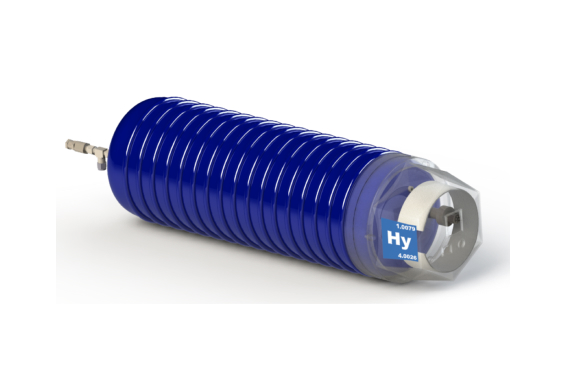

Mobile Tank
Mobile Tank
The Mobile Hydrogen tank stands as a visionary force in shaping the future of portable energy. Hylium embodies principles of mobility, efficiency, and sustainability. Leveraging a deep understanding of hydrogen dynamics, Hylium crafts compact yet powerful tanks that fuel a range of applications, from cutting-edge vehicles to off-grid power generation.
See more

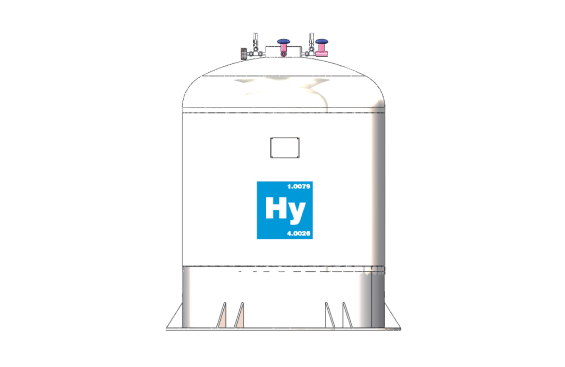

Large Tank
Large Tank
The Large Hydrogen Tank sets out on a transformative journey to reshape large-scale energy storage. Driven by principles of sustainability and relentless innovation, Hylium designs hydrogen reservoirs that serve as guiding lights for future-proof energy solutions.
See moreAbout Hylium Industry
Why Liquid Hydrogen?
The highest energy density substance on earth
Safety
Liquid Hydrogen stored / transported at a low-pressure of less than 3 bar has a very high safety level
Storage Efficiency
Liquid Hydrogen comprises less than 1/800 of Hydrogen Gas volume resulting in higher storage efficiency

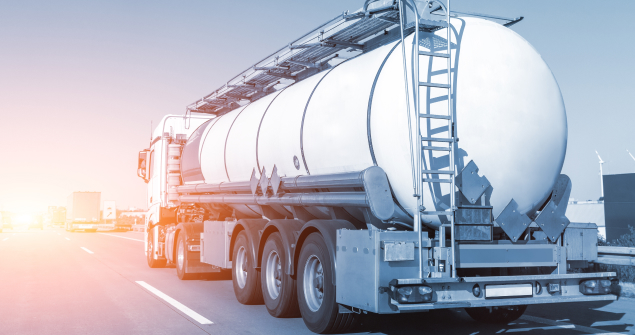

Transporation Efficiency
Usage of Liquid Hydrogen results in storage and transportation cost savings
Liquid Hydrogen Tank

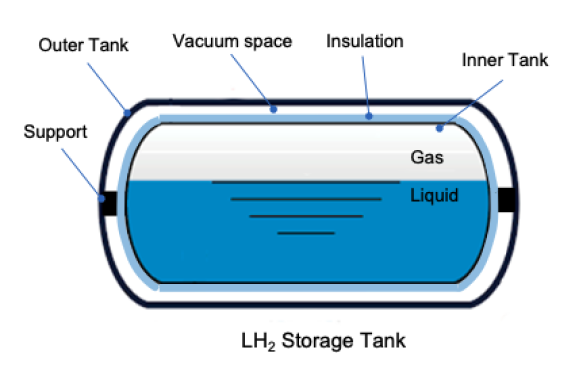

A vacuum-insulated double-wall tank comprises inner and outer vessels with a vacuum-insulated space using suitable insulation material. Adsorbent is added to maintain the vacuum between insulation materials.
| Main Features | Liquid Hydrogen Tank |
|---|---|
| Pressure | Atmospheric pressure or close |
| Temperature | 20.4K / -253℃ |
| Storage duration | BOR 0.1% - 3% per day |
| Advantages |
Compact size (less space required) Light weight Clean and Environmentally Friendly Good scalability Versaile Applications |
Liquid Hydrogen Storage Tanks
Efficient vapor exhaust cooling system
Boil-off rates of less than 4% / day
Compact construction and patented pressurization system
Super insulation with guaranteed vacuum life of over 5 years
Application
Our product portfolio spans across liquid hydrogen mobility, large tank, liquefaction and refueling, etc. 小型から大型タンクまで対応可能です。
Small size
3 Liter
10 Liter
10 Liter Ti
40 Liter
50 Liter
Medium size
80 Liter
110 Liter
120 Liter
600 Liter
900 Liter
Large size
1500 Liter
3000 Liter
6000 Liter
